Rubber Belt Vulcanizer



The Bayrich rubber belt vulcanization machine provides excellent thermal vulcanization splicing for all fabric layer EP rubber belts and steel cord rubber belts. The working pressure of the layered fabric belt is 100PSI and the working pressure of the steel wire rope belt is 200PSI.









Advantage of Bayrich rubber belt vulcanizing press is more convenient , easy ,flexible. And no need to install when use it.

The press is composed from upper and lower parts. There is no complex installation procedure.

Customers can use single unit or several units according to the length of the joint.

BAYRICH PORTABLE RUBBER CONVEYOR BELT VULCANIZER



Design Style: Frame style

Pressure System: Standard Rubber Bag, air pressure

Operating Pressures: 7 bar (100psi)

Splicing Belt type: EP Belt

Cooling: Water cooling;

Heating Platen: Electric shielded resistance or silicone elements

Optional:

Silicon Heating element is optional

Lifting Rings on top frame (easy for lifting)

Manual Water Pump

Features:

BAYRICH PORTABLE RUBBER CONVEYOR BELT VULCANIZER only have two parts, it can be used quickly without assembly.

Include water cooling system.

Operating pressures up to 7 bar (100psi). If need 14bar (200psi) or special for workshop use, can produce.

Portable design for filed working.

Completely automatic process programmed from the control unit (heating, dwell time).

Working Voltage: 220V,

Specifications:

Heating Platen

The rubber belt vulcanizer platen constructed from extruded plank, heating element and durable composite insulation. Each platen contours to belt irregularities, ensuring for whole splicing area. Platens available, either rhombic or rectangular design. Maximum temperature 325°F(160℃)

Frame

Aluminum frame have 2 parts, upper part includes frame and upper heating platen, lower part include lower heating platen, pressure bag and frame. Ends equipped with retractable carrying handles on smaller models.

Pressure Bag System

Can used for both water and air, normally, used air pressure, via air compressor.

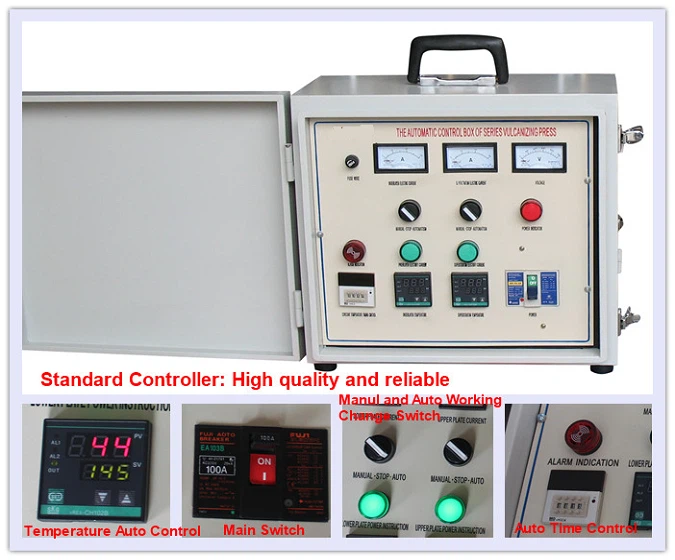

Automatic Control Panel

With time control and digital temperature control. After heating temperature of both platens, the dwell time, the cooling temperature and the pressure have been set, the whole splicing process will run automatically. All the parts use high quality electric devices with CE certificated. In case of electronic controller failure, manual operation is possible as well.



Consisting of:

1 Set	Heating platen within water cooling system
	A= 14 inch , B=46 inch
design the heating platens in such a way that make less the +/- 5 Degree Celsius variation in the platen surface cooking temperature.
2. Rapid Integral Water Cooling System, allow temperature cooling down from 175C to 75C in 5mins

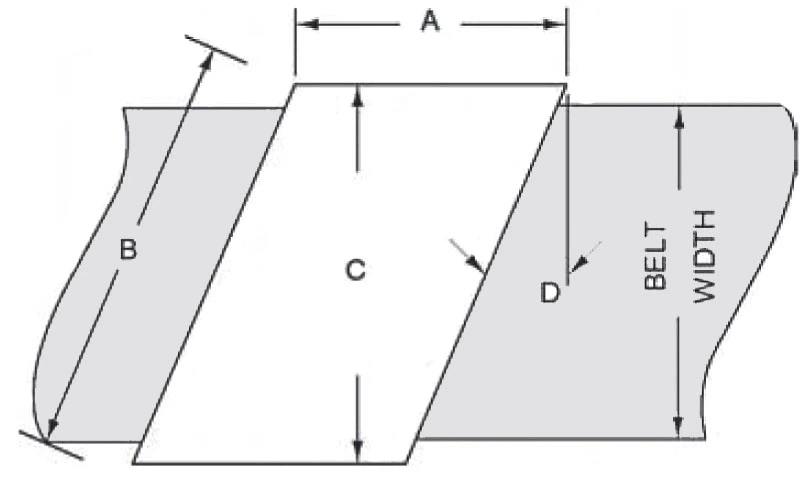

A = Length of heating platen along belt B = Width of heating platen across the belt on the bias C = Right angle dimension across the belt, plus edge overlap D = Bias angle





BAYRICH PORTABLE RUBBER CONVEYOR BELT VULCANIZER

1 Set		Top part & bottom Part
Top Part include one pc heating platen Bottom Part include another heating platen & pressure bag

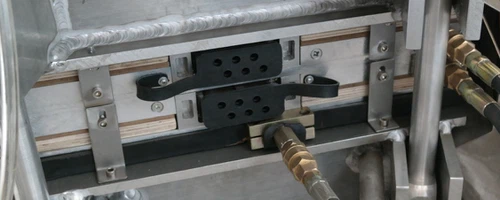

Photo of the machine from different side
BAYRICH PORTABLE RUBBER CONVEYOR BELT VULCANIZER

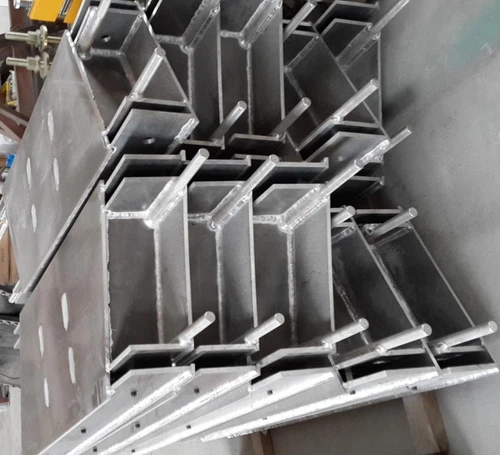

2PCS	High quality welded aluminum frame, easy to assemble and bring to site, also easy use in limited working space
Lifting rings and side handel is optional, for big size machine, is standard

BAYRICH PORTABLE RUBBER CONVEYOR BELT VULCANIZER

Pressure Bag
1 PC	Uniform Pressure bag (Reinforce Rubber Bag, without metal frame) Along with the bottom frame
Light Weight and new design with completed rubber, supply uniform pressure, also can used for both air and water pressure.

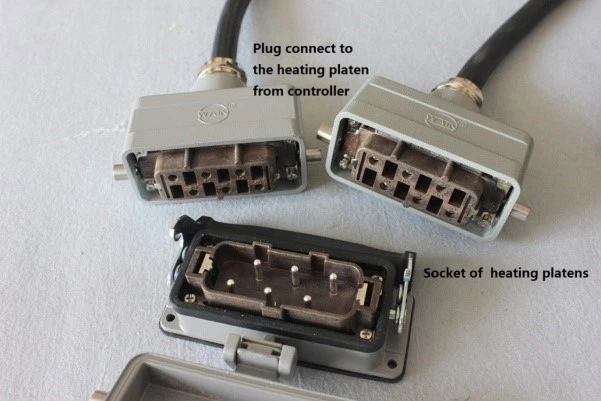

1 PC	Auto controller with cables weight: 15kgs

2 PIECES FRAME STYLE CONVEYOR BELT VULCANIZER

1 PC	Cooling Pump

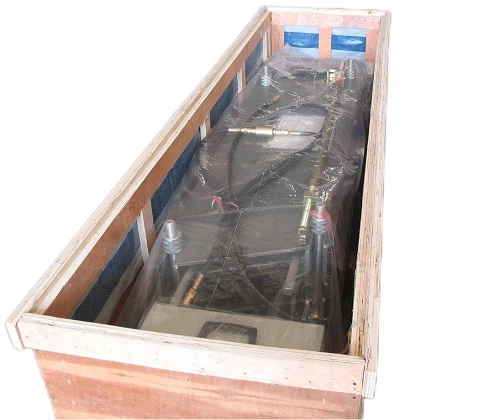

Standard Exporting Wooden Box
