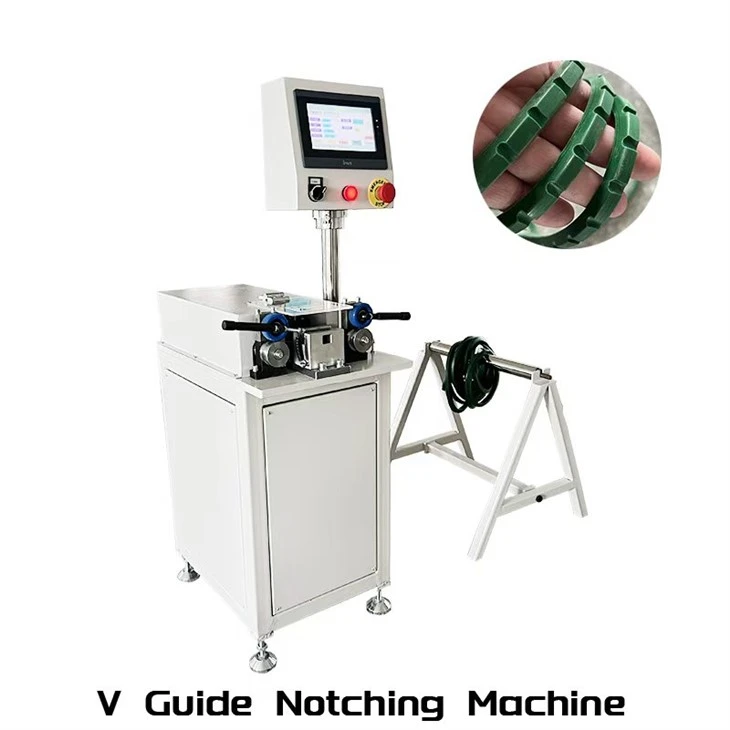

V Guide Notching Machine
Bayrich V-Guide Notching Machine is a CNC-controlled automatic device designed for notching V-guide profiles (guide strips) used on PVC and PU conveyor belts. Notched V-guides are essential for conveyor systems that require precise belt tracking around small-diameter pulleys. The notching process creates evenly spaced teeth along the guide strip, allowing it to flex around pulleys without cracking or delaminating — a critical requirement that solid (unnotched) guides cannot meet.
Description
▎ Why Notch V-Guides?
● Small Pulley Compatibility - Notched guides flex around pulleys as small as 1 inch diameter; solid guides crack or detach on small pulleys
● Precise Belt Tracking - Toothed profile maintains exact longitudinal alignment, preventing belt deviation
● Self-Cleaning - Open tooth structure allows debris and liquids to pass through, ideal for wet or dirty environments
key features:
|
● CNC Programmable Control - Set feed speed, tooth pitch, and notching length via digital panel ● Automatic Operation - Auto feeding, pulling, and notching; minimal operator intervention ● Roller Feed System - Full-roll guide strip loaded directly; continuous processing ● Interchangeable Dies - Quick-change tooling for different V-guide sizes and tooth profiles |
● Compact & Optimized Frame - Horizontal head design, improved transmission structure ● Simple Maintenance - Minimal moving parts; easy access for cleaning and die replacement ● High Precision - Servo-driven feed ensures consistent tooth pitch and depth ● Versatile Compatibility - Suitable for PVC and PU guide strips in various sizes |
Machine Detail
▎ Technical Specifications
|
Control System |
CNC programmable with digital display |
Feed Method |
Servo-driven roller feed |
|
Guide Strip Material |
PVC / PU (TPU) |
Notching Method |
Die-cut punching |
|
Applicable Guide Sizes |
K6 / K8 / K10 / K13 / K17 / K22 |
Tooth Pitch |
Adjustable via controller |
|
Feed Speed |
Adjustable |
Notching Length |
Settable via controller |
|
Power Supply |
220V / 50Hz |
Air Pressure |
0.4 – 0.6 MPa |
|
Die Change |
Quick-release, tool-free |
Operation Mode |
Automatic |
▎ Common V-Guide Profiles (Notched)
|
Type |
Base Width |
Height |
Top Width |
Min. Pulley Ø |
|
K6 |
6 mm |
4 mm |
4 mm |
1.0″ |
|
K8 |
8 mm |
5 mm |
4 mm |
1.5″ |
|
K10 |
10 mm |
6 mm |
6 mm |
2.0″ |
|
K13 |
13 mm |
8 mm |
7 mm |
3.0″ |
|
K17 |
17 mm |
11 mm |
10 mm |
4.0″ |
|
K22 |
22 mm |
13 mm |
11 mm |
6.5″ |
▎ Typical Applications
● Electronics assembly - precision positioning conveyors with small pulleys
● Food processing - wet environment conveyors requiring self-cleaning guides
● Packaging & logistics - high-speed sorting lines with frequent start-stop
● Metalworking - chip evacuation and coolant drainage on CNC machine conveyors
● Automotive - heavy-duty transfer lines with notched guides for small bend radii
▎ Notching Process Flow
1. Load the V-guide strip roll onto the roller feed device.
2. Thread the guide strip through the feed mechanism to the notching position.
3. Set parameters on the CNC panel: feed speed, tooth pitch, and total notching length.
4. Install the matching die for the guide size (K6–K22).
5. Press START - the machine automatically feeds, notches, and advances the strip.
6. After notching is complete, cut the finished strip and proceed to belt welding.
Simple and optimized rack

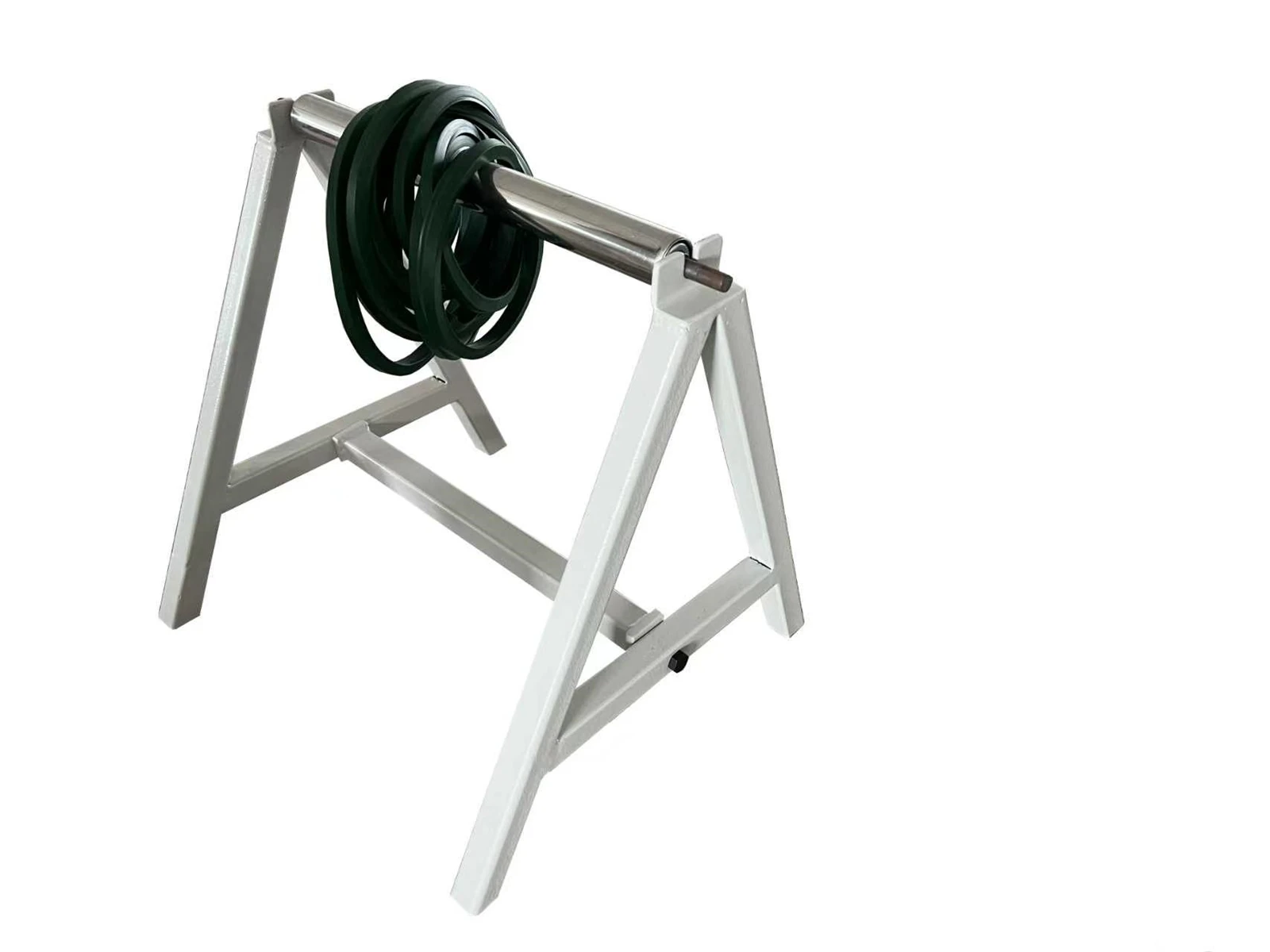

Roller loading device
Customizable mold

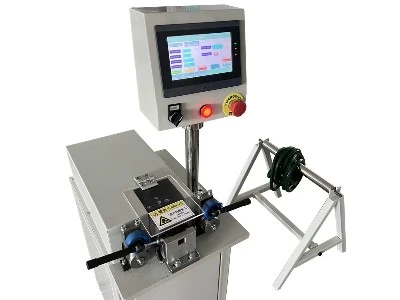

CNC digital display panel
Notched V guide
Two Notching shape for option
