Pneumatic Finger Punching Machine

Name: China Pneumatic Finger Punching Machine Manufacturers Suppliers Factory - Made in China - Bayrich Safety Equipment
Brand: Bayrich
SKU: 199061445

Bayrich pneumatic finger punching machine is an economic semi-auto finger punching machine using for preparation of Single finger, finger over finger punching and bias finger.
Compared with the other two models, the price of the pneumatic finger punching machine is the lowest, and it also has the best selling products for both workshop and on-site work.
Finger or finger over finger joint is a common joint of PU PVC conveyor belt, and it is also the strongest. The PU PVC conveyor belt layered by a ply separator first and then make a finger punch by finger punching machine.
Since the shape of the punched belt is the same as that of finger, it is called finger joint.
The finger joint is fused by hot press of belt hot press machine, and the bonded joint part is uniformly stressed, thus ensuring the hygiene and easy cleaning characteristics of the conveyor belt.In this splicing process, FINGER PUNCHING MACHINE is a necessary equipment.

Send Inquiry

Description

Feature

Bayrich currently has three different types of finger punchers for option, which are applicable to different scenarios. The following are the advantages of pneumatic finger puncher:

1. Energy saving. No power supply is required.. It just needs an air pump to drive the machine. More energy saving and cost saving.

2. Efficient. The super-strength gear tapping cylinder is punched in place at one time, and the gear tapping is fast when the working section is saved. With continuous improvement and updating, the speed of the new generation pneumatic finger punching machine is 3 times faster than the original one, which is faster and accurate.

3. Accurate positioning. This machine is equipped with a precise displacement system, which can easily and accurately align, and the belt processing is significantly improved.

4. Both singer finger and finger over finger punch. High-precision finger punching ensures the quality of belt finger connection, and can be used for single or finger over finger punching and also bias finger punch (single finger plate and bias finger plate is optional).

5. Unlimited belt width, opening at both ends, small machines can also make wide belts. At the same time, it can have a larger model. At present, the maximum width is 4 meters.

6. Highest cost performance. Compared with the other two models, the price of the pneumatic finger punching machine is the lowest, and it also has the best selling products.

Technical Datasheet

Bayrich Pnematic finger punching machine does not need electricity. But an air compressor is required.

Connect the air pressure pipe reserved for the machine to the air supply of the air pump.

Therefore, auxiliary tools are required for machine operation. Auxiliary tools are purchased separately and are not included in the scope of joint equipment.

For the purchase of air press, our proposal is as follows: not less than the following configuration parameters. Speed 1380V/min; Power 750w; Exhaust pressure 0.7Mpa; The gas storage capacity is 30L.

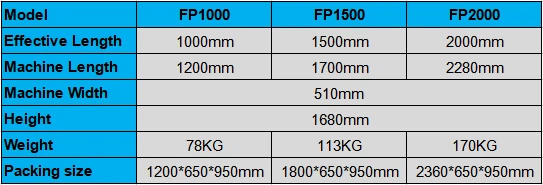

This machine standard model is: 1000/1500/2000. For more size please contact with our sales.

product-543-185
