Industrial belt processing equipment is a mechanical equipment used for manufacturing, repairing, and transforming verious industrial belts. These devices can not only fabricate various specifications of conveyor ,timing ,flat belts, but also carry out maintenance and renovation of conveyor belts to better adapt to different usage environments.
Industrial belt processing equipment include belt cutting and splicing machine, conveyor belt hot pressing machine, conveyor belt splicing machine, conveyor belt polishing machine, conveyor belt slitting machine, V guide welding ,cleat ,sidewall welding machine ,hole punching machine ,edge sealing machine etc. These devices use advanced technology and processes, which can significantly improve work efficiency, and production quality. This will maximize manufacturing efficiency and also provide customers with cost-effective products.
They are widely used in fields such as mines, ports, chemicals, electricity, and construction, and have become an important component of modern logistics industry.
-
High Performance-price Ratio Timing Belt Slitter
Bayrich TS timing belt slitter -Timing Belt Slitting Machines | High-Speed & Automated Solutions
Add to Inquiry -
Conveyor Belt Cutter: Precision Tool for Efficient Belt Joint PreparationThe GDJ Series Conveyor
Add to Inquiry -
PU/PVC Conveyor Belt Sidewall And Cleat Welding Machine
High-Frequency PU/PVC Conveyor Belt Sidewall and Cleat Welding Machine - Your Ultimate Solution for
Add to Inquiry -
Air Cooling Treadmill Runninng Belt Joining Machine
The air-cooling treadmill belt joint machine is a device used for treadmill belt joints. It
Add to Inquiry -
Treadmill Belt Jointing Machine
Use for welding PVC or plastic products on Treadmill belt running belts, conveyor belts, belt
Add to Inquiry -
Air Cooled Blet joint Press Machine
Bayrich Air cooled press Machine is using for jointing PU, PVC, PE, PVK and other thermoplastic
Add to Inquiry -
Big Size Air Cooled Belt Vulcanizer
Using For Quick Joint PU PVC Conveyor Belt .Portable Air Cooled Conveyor Cooling Conveyor Belt
Add to Inquiry -
BAYRICH PORTABLE RUBBER CONVEYOR BELT VULCANIZER The Bayrich rubber belt vulcanization machine
Add to Inquiry -
Bayrich water cooled press Machine, also named as Belt joint (connecting) machine is a device that
Add to Inquiry -
Pneumatic Finger Punching Machine
Bayrich pneumatic finger punching machine is an economic semi-auto finger punching machine using
Add to Inquiry -
Manual Finger Punching Machine
Bayrich manual finger puncher is designed to punch fingers on the ends of lightweight thermoplastic
Add to Inquiry -
Manual Finger Puncher for Hard and Thick Belt
Bayrich manual finger puncher for thick belt is also designed to punch fingers on the ends of
Add to Inquiry
a beginner's Guide
Conveyor belt fabrication machines are essential tools for those in the manufacturing and production industry. They allow for the efficient and precise creation of conveyor belts, which are used in a wide range of industries such as food processing, mining, packaging, and more.
Manufacturers and producers of conveyor belts need these machines to streamline their production processes and meet the demands of their customers. With a conveyor belt fabrication machine, they can create high-quality belts that are durable, reliable, and built to last.
These machines are also beneficial for those who are looking to start their own business in the conveyor belt industry. By investing in a reliable and efficient conveyor belt fabrication machine, they can produce quality belts for customers and build a profitable business.
In addition, conveyor belt fabrication machines are environmentally friendly as they minimize waste and reduce the need for manual labor. This not only saves time and money but also promotes sustainability in the manufacturing process.
Overall, anyone involved in the manufacturing and production of conveyor belts, or those looking to start a business in this industry, can benefit greatly from investing in a conveyor belt fabrication machine. They are efficient, cost-effective, and provide a reliable way to produce quality belts that meet the demands of a wide range of industries.
how To Start Your Industrial Belt Processing Business?
Starting a industrial belt processing business can be a lucrative venture for entrepreneurs looking to enter into the manufacturing industry. With the right equipment, knowledge, and marketing strategy, it is possible to establish a successful business that provides reliable and efficient processing services to clients. Here are some steps to help you get started:
Conduct Market Research - Before starting any business, it is crucial to conduct thorough market research to determine the demand for your services, the competition in the area, and the price range for the services you will be offering. This information will help you to refine your business plan and make informed decisions about your operations.
Choose a Location - A conveyor belt processing business requires a warehouse or factory where you can install the necessary equipment. Consider finding a location that is accessible to transportation routes and close to your target market. Also, make sure that you have the appropriate permits and zoning clearance to operate your business.
Purchase Equipment - The equipment you select will determine your production capacity and the types of services you can offer. It is advisable to select high-quality equipment from reputable manufacturers to ensure reliability and longevity. A conveyor belt processing business requires conveyor belts, conveyors, and other processing machinery. You may choose to buy new or used equipment, depending on your budget.
Hire Personnel - A conveyor belt processing business will require skilled personnel to operate equipment, manage production, and carry out quality control. Hire a team of experts who have experience and the necessary skills to ensure your business operates efficiently.
Develop a Marketing Strategy - To attract clients, you need to create an effective marketing strategy. Start by building a strong online presence through your website and social media platforms. Offer competitive pricing, and ensure that your services are of high quality. Engage in networking events and partnerships with related businesses to increase your customer base.
In conclusion, starting a industrial belt processing business can be a viable opportunity for aspiring entrepreneurs. With a strong business plan, the right equipment, qualified personnel, and an effective marketing strategy, you can build a successful enterprise in this industry.
As a Chinese supplier of one-stop conveyor belt processing equipment, we can provide you with one-stop solution .
Including the procurement of machines, technical training for processing, and procurement recommendations for downstream industrial belts.
How much does it cost to purchase industrial belt equipment?
Our free service hotline:0086-15669710783
initial stage
When just started our industrial belt processing business and don't need to purchase too many machines. You only need to purchase the most basic finger punching and splicing machines to complete the jointing of industrial belts.Finger punching machine$1000-$1500 Splicing machine $2000-3000 .Minimum $3000 you can start your own industrial belt processing service business.
Development stage
After your industrial belt business starts to stabilize, you can consider equipping more machines, such as layering machines, various sizes of joint machines, manual toothed machines, etc., to meet the splicing work of different occasions and conveyor belt specifications.Example A belt ply separator $1500-3500 ,2100mm belt splicing machine $4000-8000.
Expansion stage
When your industrial belt business reaches a certain stage and you have a certain profit. You can consider purchasing more processing equipment, such as V guide welding machines, holepunching machines, edge banding machines, etc., to meet the needs of conveyor belts in different industries. V guide welding machine $2000-$3000,hole punching machine $7000-9000,edge sealing machine $7000-$9000.
Why choose us?

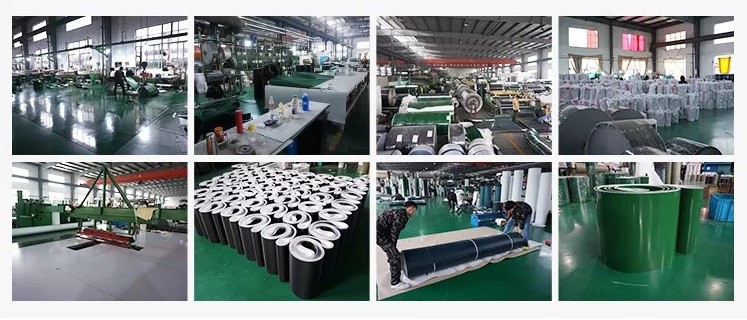

We are one of the earliest factories in China to produce industrial belt manufacturing equipment. We can not only help you purchase equipment, but also provide all the industry knowledge we know. Help you smoothly progress your industrial belt processing business.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Reasonable price
Made in China
affordable prices
advanced equipment
Internationally leading belt joint technology
professional team
Provide various industrial belt industry solutions
global shipping
No need to wait, the fastest shipping speed
How to order from us
Create a comprehensive solution for industrial belt fabrication
01
Pre-sale
Reply within 24 hours after receiving inquiry.Understand customer needs and provide the most professional suggestion.
02
On Sale
After the customer confirms their purchase intention, we will assist you in checking the shipping information. Provide you with the most cost-effective transportation plan. Create contract and complete payment.
03
After-sales
After the customer receives the machine, assist you in completing the installation and sample testing of the machine. The after-sales service is endless. Feel free to contact us when you need it. We have always been with you.
Basic knowledge
The conveyor belt, transmission belt, and flat belt all need to be connected in a endless shape before they can be installed in the equipment for use. Therefore, the quality of industrial belt joints directly affects the service life of the belt and the smooth operation of the conveyor line. Below is the commonly used belt joints methord:
Finger punch joint
Overlap joint
Mechanical fastener joint
Cold welding joint
Finger punch joint
Separate the opening of the conveyor belt into 2 or 3 layers
finger punching on the layered belt
Melt the two ends with a hot press machine
overlap joint
Grinding the belt two ends
Apply glue on both belt ends
Hot melt or vulcanized the belts by hot press machine
Mechanical fastener joint
Cut the belt opening neatly
Select suitable fastener for different conveyor belt thickness
connect the belt by clipper
Cold welding joint
Split the belt with staggered
Apply specific adhesive to the opening for splicing
Press with a heavy object
different Joint methods for Verious industrial belts
PU PVC Conveyor belt
Finger punched and hot melt is the most recommed joining methord for pu pvc conveyor belt ,and In certain situations, mechanical steel buckle joints are also quite common.
Rubber conveyor belt
Rubber conveyor belts are usually joined with glue and vulcanization to ensure their firmness, and mechanical steel buckle joints are often used for their convenience and fast joint .
Pu timing belt
PU timing belts are usually joined by heating and melting with finger cutting. There are also styles that are seamlessly spliced during production
Flat belt
The most common joint method for is Flat belt is to polish it into an inclined surface and then overlap it with glue and heat
Round belt
The splicing method for round belt is to trim both ends flat with specialized scissors, heat and melt the electric soldering iron, quickly bond both ends, and polish the interface flat
Spindling tape
Textile spindling tape are also connected by hot melt splicing with special processing tools. Different types of belts require different molds to be jointed.
Wenzhou Bayrich Safety Equipment provides splicing and cutting and other processing equipments for all types of industrial belts, one-stop services to achieve your career in the field of industrial belt processing.
sTEPS FOR PVC CONVEYOR BELTS HOT MELT JOINTS
All PVC conveyor belts must be connected in a endless shape for practical use, so PVC conveyor belt joints are a crucial preparation step. The quality of the joint directly affects the service life of the PVC conveyor belt and whether the conveyor line can run smoothly.
The general methods for connecting conveyor belts include: hot press joints, mechanical joints, cold adhesive joints, etc. The following is an introduction to hot melt joints.
The adhesive surface material of PVC conveyor belt is polyvinyl chloride, which is composed of polyester fiber cloth and polyvinyl chloride adhesive. Its working temperature is generally between -10 ° C to+80 ° C, and its joint method is generally a finger joint, which is suitable for lateral stability and transmission in various complex environments.
Operating steps for belt hot melt joint:
1. Before hot pressing, lay a PTFE heat-resistant cloth on the lower steel plate, and then lay the finger punched belt (already treated with an air gun) flat on the hot press machine, with the joint placed on the centerline of the template. To ensure even heating on both sides of the wiring. After the belt that needs to be connected is laid flat, add a small piece of the same thickness on both sides; Small belt is used to prevent the overflow of melted PVC raw materials, which can cause the edges of the belt to become thinner after being connected. Lay another piece of PTFE heat-resistant cloth on the belt. (The function of Teflon is to not adhere to melted PVC, resistant to high temperatures, fast heat transfer, and uniform heating.)
2. Cover the upper mold and tighten the black snap rings at both ends, so that the upper and lower steel plates are tightly fastened and the air pressure is adjusted to 1-1.5 bar.
3. Turn on the power switch. Set the target temperature and cooling temperature (usually set to 60 degrees), and set the heat preservation time, usually 5 minutes. When the temperature rises to the target temperature, the temperature control box will stop heating and switch to the heat preservation state. After the heat preservation time, cool the machine. When it drops to the cooling temperature, the entire control box will automatically shut off. Wait for about 10 minutes at this time to allow the machine to continue cooling. Do not interfere with the hot pressing template during the heating process, please keep the voltage stable.
After hot pressing, when the entire temperature control box is powered off, wait for 5 to 10 minutes before turning on the machine to achieve the effect of belt connection. Open the black snap rings on both ends and remove the upper template; Slowly roll up the PTFE heat-resistant cloth.
Precautions During joint the belts
1. Draw dimension lines: When drawing, the side of the tape is generally used as the reference, and the dimensions should be consistent, the angles should be accurate, and the reference should be unified. Pay special attention not to confuse the diagonal direction of the adhered surface and the corresponding relationship between the upper and lower adhesive layers.
2. Layered finger punching: Use a ply separator machine to layer the two ends of the conveyor belt if the belt thickness is more than 4mm, with both ends layered in a fixed proportion. Then, use a finger punching machine to make finger over finger punching.
3. Splicing: Use a hot air gun to assemble and fix the punched finger before put the belt into hot press machine .
4. Hot pressing integrated molding: Place the fixed conveyor belt on the hot pressing machine for hot pressing fixation molding, so that the conveyor belt can be completed and used on the equipment.
Key issues to pay attention to in conveyor belt joints
1. The design and production of conveyor belt joints should ensure that the entire tape is straight at the joint without any curvature, otherwise it will cause the conveyor belt to deviate and be difficult to adjust. The steps on both sides of the joint ensure accurate alignment, and the entire bonding process should be carried out on a flat surface to ensure the overall flatness of the joint.
2. When separating the belt, it is important to pay attention to the thickness relationship between the upper and lower layers
3. Finger punching requires aligning the reference edges at both ends, otherwise it may cause the teeth to be unable to be spliced together
4. When hot pressing, the suitable temperature should be adjusted according to different conveyor belts, otherwise the joints of the conveyor belts may not be firmly connected due to insufficient temperature.
Conveyor belt splicing Machine
Conveyor belt splicing machine, also known as belt joint (hot pressing) machine or vulcanization machine, is a device that uses high temperature, pressure and cooling (air cooling, water cooling) technology to melt and connect the heads of PVC, PU, PE and other conveyor belts.
The maximum heating temperature is 200 degrees Celsius. Heating the upper and lower beams, heating at 0-172 degrees Celsius for approximately 10-20 minutes; The insulation time can be set as needed; This traditional working mode can meet the physical characteristics and process requirements of various belt processing. Due to the unique heating design, the length direction of the motherboard generates heat evenly, ensuring the quality of belt processing. Airbag pressurization: (light machine) The pressure can be adjusted from 0 to 2.5kg/cm ^ 2, making it easy to operate. The machine is equipped with an automatic control box, and users can adjust and control the temperature according to pre-set settings. According to the general requirements of belt connection processing, completing a processing cycle of about 15-30 minutes, the whole machine is designed with novelty, good reliability, and beautiful appearance. Can adapt to different needs from on-site belt joints to factory mass production.
Both air-cooled and water-cooled hot press joint machines for conveyor belts are common models of hot press joint machines, which can effectively connect various materials, improve production efficiency and quality. Although there are differences in cooling principles between the two, there is no superiority or inferiority. Each has its own characteristics and can meet the needs of different customers.
aIR COOLED BELT SPLICING MACHINE
The air-cooled conveyor belt joint machine is an efficient, environmentally friendly, and energy-saving equipment mainly used to connect the two ends of the conveyor belt, it can be used in high temperature and harsh environments, Its compact, small in size, and easy to operate, which can greatly improve work efficiency,avoiding the environmental pollution and energy waste caused by traditional joint machines.
The air-cooled conveyor belt joint machine can not only meet the needs of large-scale belt splicing, but also maintain stable and reliable performance during the working process. It adopts advanced heating and cooling technology to maintain the normal working temperature at the joint, thereby ensuring stability of the splicing place .
Overall, air-cooled conveyor belt joint machine is a rapidly developing material conveying equipment that has been widely recognized for its high efficiency, energy conservation, and environmental protection characteristics. it is believed that will become an important direction for the material conveying industry.
WATER COOLED BELT SPLICING MACHINE
water-cooled hot press joint machines use water to cool and lower the temperature of the heating plate, which can make the temperature of the heating plate more uniform during heating, thereby achieving better hot pressing effects. At the same time, this type of joint machine is more sensitive to the heat generated, can quickly reduce temperature, avoid wear on the machine, and effectively improve the service life of the machine. In addition, the cost of the water-cooled hot press joint machine is relatively low, making it easy to maintain and repair, making it convenient for customers to operate.
In short, both air-cooled and water-cooled hot press splicing/ joint machines for conveyor belts are reliable high-performance machines. Regardless of the type of machine, it can meet the needs of customers, improve production efficiency and belt splicing quality.
Why need separate the belt before splicing work
Conveyor belt ply separator - a tool used to cut layers of conveyor belts during the preparation of conveyor belt joints. This tool is very useful when preparing tooth to tooth joints and lap joints, as well as installing embedded mechanical fasteners.
·
As is well known, conveyor belts are equipment used for transporting goods, which often experience breakage, aging, wear and tear during use, leading to the need to replace or repair the conveyor belt. The joint connecting the conveyor belt has become a relatively important link. Why do conveyor belts need to be layered before being connected?
When need separate the conveyor before before splicing
To ensure the quality and firmness of the connection. If the ends of two conveyor belts are directly connected together, it often generates a large amount of contact surface, friction, and tension, resulting in low strength of the connection and easy occurrence of displacement and fracture. By layering and then connecting, the force at the joint can be more uniform, achieving a more stable joint connection and avoiding damage and danger during use.
The joint after layering can enhance the overall performance of the conveyor belt. The design of conveyor belts usually takes into account various factors such as load-bearing capacity, bending capacity, and fatigue resistance. If the joint is directly connected without layering treatment, it will damage the overall design of the conveyor belt and affect its service life and efficiency. After layering, the joint can retain the overall design, reduce the impact of the joint on the entire conveyor belt, and improve overall performance and durability.
Normally, if the thickness of the conveyor belt is greater than 5mm, we recommend layering before splicing.
Industrial Belt slitting Machine
Industrial belt slitting machine is an efficient equipment that can help us quickly and accurately cut industrial belts. It adopts advanced technology with features such as automated control and high-speed cutting, making our work simpler and more efficient.
For many enterprises, industrial belts are one of the essential equipment, which can greatly improve production efficiency. However, when we need to cut industrial belts, traditional methods may not meet our needs and may even waste a lot of time and cost. The emergence of industrial belt cutting machines will make our work easier and faster.
Firstly, industrial belt slitting machines can perform high-speed cutting, maximizing production efficiency. We don't have to manually cut the conveyor belt anymore, nor do we have to worry about the accuracy of the cutting. Moreover, when using industrial belt cutting machines, we can easily and accurately cut different sizes, avoiding waste and excessive losses, further reducing costs.
Secondly, industrial belt slitting machines also have intelligent automation control technology. We only need to simply set some parameters to enable the equipment to automatically complete the cutting. This facilitates our operations and reduces the difficulty of personnel usage and operation, making our production more intelligent.
In short, industrial belt slitting machine is an advanced, efficient, and intelligent equipment that plays a very important role in improving the production efficiency of enterprises. In the future, with the continuous development of technology, it will be more widely applied in various fields. We should actively master and apply this technology to assist the development of enterprises.
Bayrich have different types of industrial belt slitting machine can cut different industrial belt to meet different request .
Conveyor belt cutting/ slitting machine
Mainly for cutting open end Pu Pvc conveyor belt and rubber belt
Flat belt cutting/slitting machine
For cutting both open and endless belt sleeve ,both conveyor belt and flat transmission belt
Timing belt cutting/slitting machine
For cutting endles timing belt and conveyor belt
Frequently asked questions
Everything You Need to Know
'lt is awesome to work with Bayrich. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.
What is our warranty time?
The warranty period for all machines is one year. Within one year, if the machines are damaged due to human factors, we will provide free accessories and provide video guidance to complete the replacement work. This replacement process is not complicated. All customers we currently serve can complete replacement work on their own. If there is any damage to the accessories one year later, the cost of purchasing the accessories needs to be borne by the buyer.
Is the operation of conveyor belt processing equipment complex?
It's not difficult, we can easily teach you how to use it through videos
How to install and use the machine after receiving it?
Most of our machines do not require installation, they can be plugged in and used after unpacking. Very convenient. Only a few machines require the installation of accessories. We will provide video guidance.
What is the payment term?
100% paid before shipment by TT
Which countries are your belt processing machine sold to?
Our machines are sold worldwide, with Europe, South America, and Southeast Asian countries being our main markets.
What is the usual lead time for belt splicing machines？
We have prepared a considerable inventory of belt splicing machines. So regular models can usually be shipped within 3 days
What is the HS code for belt processing machine ?
8477800000
What are your advantages compared to others?
Low price, good service, fast delivery, and excellent quality
Do your machines have CE certification?
Yes,sure.
What are the shipping methods?
By sea from ningbo port or shanghai port ,by air from shanghai airport ,or for small splicing machine you can choose courier send directly to your factory .
Can I only purchase accessories from you separately?
Sure you can ,air heating gun,air compressor ,air bag ,silicone mold ,HF welding machine mold ,timing belt joint mold ,cutting board for finger punching machine .we can all sell separately.
Do you provide customized services?
Absolutely possible. Share your thoughts and we will help you implement them.
What is the service life of the machine?
Depending on the specific frequency of use and maintenance. Normally, it can last for 10 years
Besides industrial beltequipment, what other products can you provide?
We also sell pu pvc conveyor belt whole rolls and connection services.
Is your clipper suitable for other brands of fasteners?
Yes,other brand also workable like flexco .
Can PVC conveyor belts and rubber conveyor belts been spliced by same belt hot press machine?
No, to splice a rubber conveyor comes with a specialized vulcanization machine
What are the methods for punching holes in conveyor belts?
There are usually three different methods: punching, drilling, and laser. At present, our machine adopts a hole drilling method
Can the shorter model of the pneumatic finger punching machine be used to punch a wider conveyor belt?
Yes,the pneumatic finger punching machine two ends is open can make wider belt .example 1m machine can do 2m belts.
Can the slitting machine wind and unwind the rolls while cutting the conveyor belt?
Customizable unwinding and unwinding system can be used in conjunction with the slitting machine to achieve the functions of unwinding and unwinding during slitting thCustomizable unwinding and unwinding system can be used in conjunction with the slitting machine to achieve the functions of unwinding and unwinding during slitting the belt
