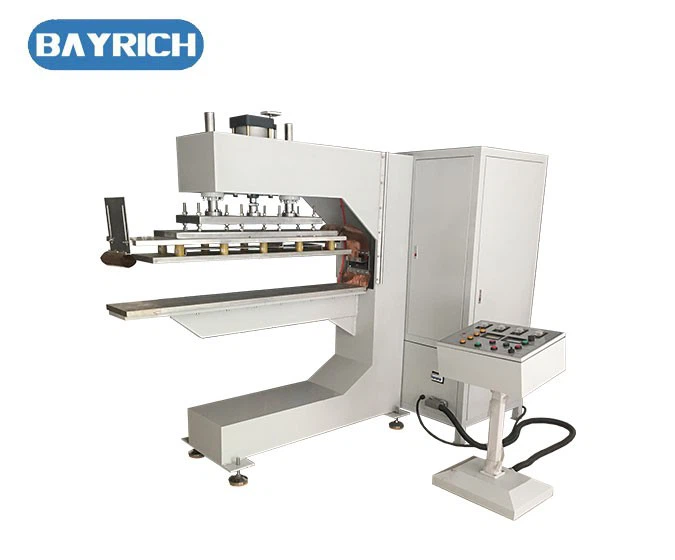

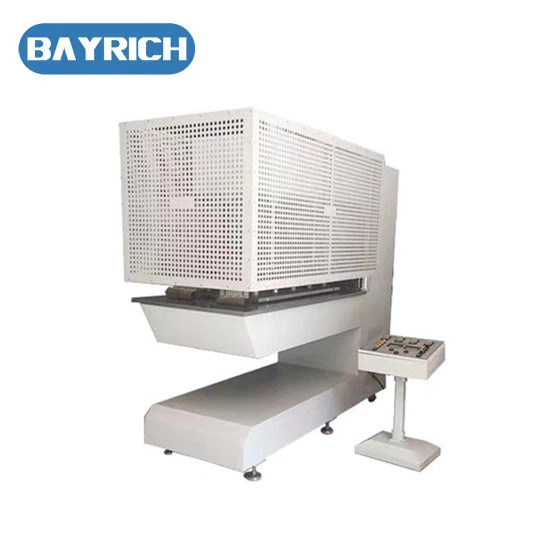

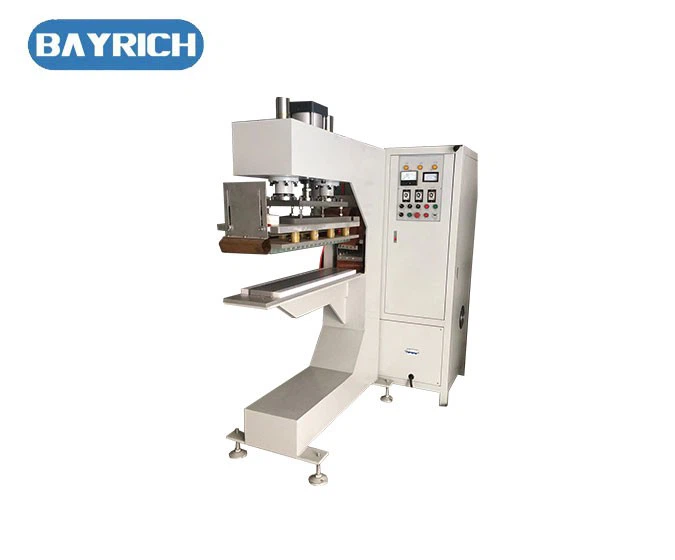

High Frequency Welding Machine
Bayrich belt High frequency welding machine based on the principle of high frequency, it is used to weld the PVC and PU conveyor belt, treadmill belt, PU PVC Sidewall, Cleat, V guide or any material containing more than 30% PVC components.
It uses high-frequency electromagnetic field to rearrange its internal molecules to achieve the purpose of welding. The welding part is beautiful and firm, and the strength is close to the strength of the raw material itself.
Description
Feature
1. Single-head machine design improves machine production efficiency and saves equipment space.
2. Adopt independent research and development to prevent high external leakage, which is at the leading level in the industry.
3. Round high-frequency oscillation box, more stable and powerful output.
4. High sensitivity spark controller is adopted to effectively prevent damage to the mold.
More advantages as below:
1. The cycle is stable; The industrial band 27.12MHZ is adopted, and the output cycle is stable, meeting the industrial band standard.
2. Strong output force: low loss coaxial oscillator, synchronous tuner, strong output force, shorten welding time, and improve output.
3. Safety performance; When the machine is working or stationary, whether it is suddenly powered off or stopped, or when it is powered on or ventilated, the machine is stationary and remains unchanged
It will not rise or fall suddenly; Improve the operation safety of workers.
4. High-speed synchronizer; The output power can be adjusted by the tuner according to the size of the electrode and the thickness of the material, with the exception of various control devices and special electronic circuits. Greatly reduce the necessary welding time and improve the production capacity of the machine.
5. Anti-wave interference device; High-cycle frequency stabilizer and high-frequency magnetic field shielding system device reduce high-frequency interference to a low level and effectively solve the problem of high-frequency interference to other machines.
6. Reinforced rack; Stable and durable.
Technical Parameter
|
Model: |
HF-10KW |
|
High frequency power: |
10KW |
|
Power supply voltage: |
380V 50/60Hz |
|
Frequency: |
27.12MHz |
|
Input power: |
18KVA |
|
Rectifier: |
Silicon Diode |
|
Oscillator: |
E3069 |
|
Maximum pressure: |
500KGS |
|
Electrode spacing: |
150MM |
|
Upper electrode size: |
400x500mm can be customized |
|
Lower electrode size: |
500x800mm can be customized |
|
Welding time: |
0-10S adjustable |
|
Capacity: |
4000 times/8H |
|
Pressurization method: |
Pneumatic drive |
Machine Detail
Working principle: the dielectric material will undergo molecular polarization under the action of high-frequency electric field and will be arranged in the direction of the electric field. If the direction is changed at a very fast speed due to the high-frequency electric field, the dielectric material will heat up due to the dielectric loss. Able to weld products in the fastest time.
Optional Accessories
We can make different length, hight and different shape mold for welding different sidewall, cleat and V guide. Please contact our sales people to advise your request.
