Flat Belt Press Machine
Bayrich Flat belt press machine, also known as belt joint (hot press) machine and vulcanizing machine, is a device that uses high temperature, pressure and cooling technology to melt and joint flat belt and spindle tape.
The portable flat belt feeder was design to solve the problem that under some special circumstances, it can quickly solve the normal operation of the mechanical transmission device.
It is characterized by lightweight, convenient to carry, good connection effect, and can work normally only by power supply.
Description
Features
1. The new embedded heating plate is evenly heated. Joint place is flat, and the thickness of the joint is consistent with that of the base belt.
2. The heating plate is not deformed under high temperature and pressure, joint is firm, and the tensile strength of the joint reaches more than 80% of the original belt.
3. Portable Splicing press lightweight, convenient to carry to any circumstances. Compact size, it can used in the place where other presses are too big to use.
4. Good joint effect, and can work normally only by power supply, no additional device request.
5. Multipurpose, Can used for transmission belts, Tangential Belt, Spindle Tape etc.
Technical Datasheet
|
Type/Size |
Hot size |
Heating time |
Cooling time |
Suit belt thickness |
Voltage |
Power |
Weight |
|
SF60*80 |
Single lower bolster side heating |
5minutes |
15minutes |
1.5mm |
220V |
100W |
2.8kg |
|
SF100*150 |
5minutes |
15minutes |
3mm |
220V |
500W |
4kg |
|
|
SF160*250 |
10minutes |
20minutes |
4-5mm |
220V |
800W |
10kg |
|
|
SF200*200 |
Double template heating, need water-cooling |
25minutes |
8minutes |
6mm |
220V |
1600W |
10kg |
|
SF200*400 |
25minutes |
8minutes |
6mm |
220V |
2400W |
50kg |
Machine Detail

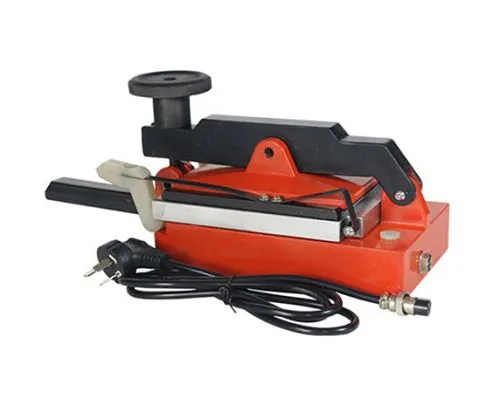

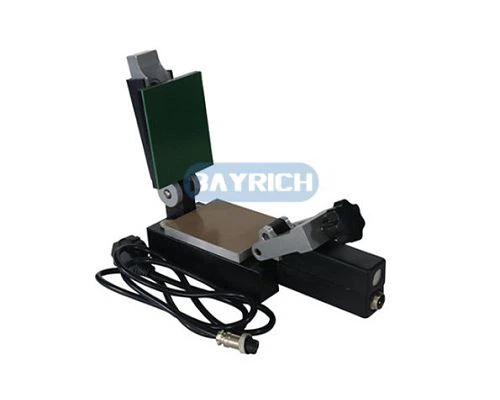

Single heating plate

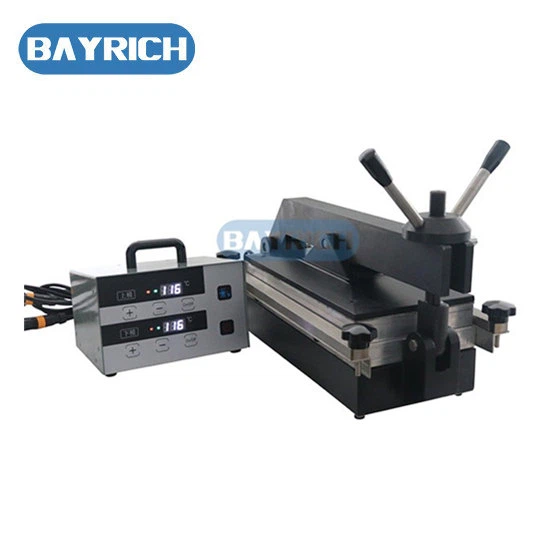

Double side heating plate with control box
Product Operation and Use
1. Before using the Bayrich flat belt press machine, first check whether all parts of the machine are in good condition, and then turn on the power according to the voltage shown on the nameplate of the machine. At this time, the signal red light and green light immediately light up, and the machine panel begins to heat up. When the temperature rises to 95-105 degrees, the green light goes out (the temperature can be adjusted as needed).
2. Coat the polished belt with adhesive, and try to apply it twice. The bonding effect is better. The two times must be dried, pinched and gently placed on the machine panel. There are supports for fixing the belt on both sides of machine. Press the belt tightly with supports, cover the upper pressing plate, tighten with bolts, and remove it after heat sealing, cooling and curing. The belt will be bonded.
3. For temperature regulation, there is a small hole at the bottom of the fuselage with a screw head inside. Rotate it with a slotted screwdriver. Clockwise is for cooling and counterclockwise is for heating. When the new machine leaves the factory, the temperature is set between 95-105 degrees. Generally, users do not need to adjust the temperature by themselves.
4. The hot connection time is generally 20-30min (according to the thickness of the belt).
