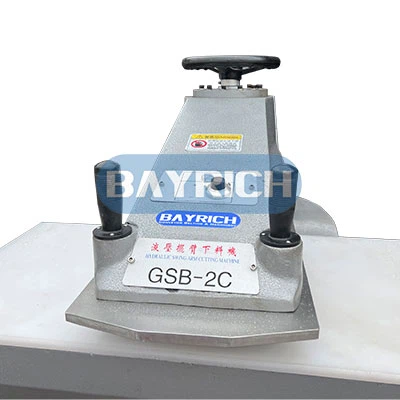

Timing Belt Finger Cutting Machine

1. Swing arm rotates freely.

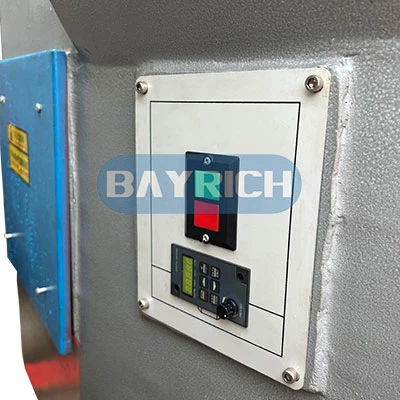

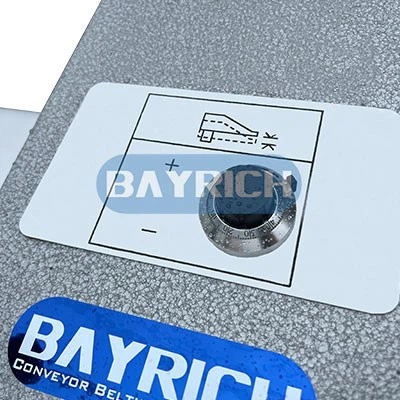

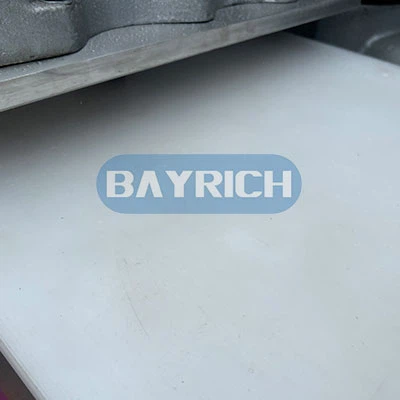

2. The height of the swing arm position is adjusted by the hand wheel at the upper end of the machine, and the blanking stroke is adjusted by the time timer, so that the best cutting position can be easily obtained, the working efficiency can be improved, and the service life of the cutter die and the backing plate can be extended.
3. Use flywheel inertia to store energy, save energy and consume low power.

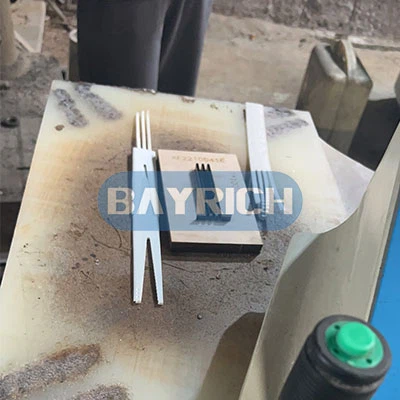

4. Suitable for different timing belt size like T5, AT5, T10, AT10, 5M, 8M, S5M, S8M, H type, L type, T20, AT20.

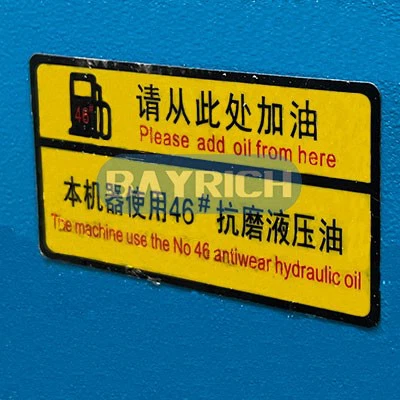

The hydraulic finger cutting machine includes a base, a rocker arm and a column, wherein the base is equipped with a power unit and a hydraulic device, the motor in the power unit is coaxially connected with the flywheel and the oil pump in the hydraulic device, the bottom of the base is the oil tank, and the upper part of the oil tank is provided with a cross bar, the motor is fixedly connected with the cross bar, the left power output end of the motor is connected with the flywheel, and the right power output end is connected with the oil pump. Advantages: The utility model has simple results and small motor loss, There will be no interference between flywheel and oil pump.
