MECHANICAL BELT FASTENERS

Mechanical Belt Fastening is the process of joining conveyor belt ends by metal hinges or plates. Mechanical Belt Fastening involves the use of mechanical belt fasteners (also called conveyor belt lacing). Mechanical belt fasteners combine strength and durability with affordability and easy installation.

Send Inquiry

Description

Products Description

MECHANICAL BELT FASTENERS

Mechanical belt fasteners,Usually used as a simple connection form for conveyor belts, the connection is simple, and the conveyor belt is suitable for more application scenarios, making it easy to replace and install; To avoid the inconvenience caused by the complicated disassembly of mechanical equipment, which may result in the installation of more endless conveyor belts. The conveyor belt connected by belt fastener only needs to align the buckle teeth at both ends and insert the pins to easily connect the conveyor belt.

Features of conveyor belt fastener: 1. Made of food grade stainless steel, acid and alkali resistant, anti magnetization, and non polluting for conveying materials.

2. Sheet forming: The joints are low and flat, reducing obstacles during the operation of the conveyor belt.

3. Short buckle body: suitable for small rollers of lightweight conveyors.

Product use: Used for connecting joints of lightweight conveyor belts. Can be used to bind PVC straps, Teflon mesh straps, nylon straps, and sail straps for food, electronics, light industry, and more.

light-duty belt fastener types

In light-duty applications like agriculture, parcel handling, food, and laundry, fasteners are available in hook and lacing styles, are installed into both ends of the belt, and are joined together with a hinge pin. Installation methods vary from machine application to using hand tools, and the fasteners are available in a variety of metals, plastics, and in some cases, food-grade materials.

Choosing the proper mechanical belt fastening system is one of the most important steps in splicing a belt.

The Clipper Wire Hook Fastener

The Alligator Lacing Fastener

The AlligatorStaple Fastening

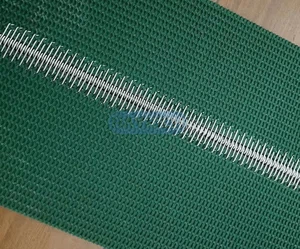

Wire Hook Fastener

The Wire Hook Fastener System is designed with a variety of different wire diameters, leg and point lengths, metals, strip lengths, and styles to meet your individual application needs.

1650472748816267

The dual arrangement and gripping design give the buckle excellent fastening ability without damaging the transmission

Integrity of the main body of the conveyor belt. The current connectors still have very low cross-sections,

Make it highly integrated with conveyor components to reduce operating noise.

The industries that WIRE HOOKER is commonly used in include：

• Packaging and component handling

• General manufacturing industry

• Commercial laundry shop

• Food processing

• Agriculture

• Filter material row

Lacing Fastener

The Lacing Fastener System is ideal for easy, economical installation of a low-profile belt splice. Available in continuous lengths, the system fits any belt width and provides uniform tension across the full belt width.

1650472822579647

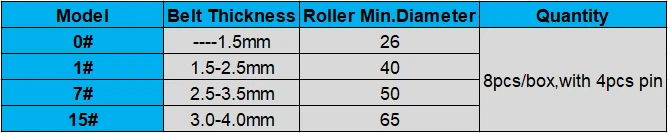

Characteristic:

Mechanical buckle strength up to 200 PIW (35 kN/m)

Suitable for conveyor belts with a maximum thickness of 1/2 "(13 mm)

Suitable for minimum drum diameter ranging from 1-14 "(25 mm-350 mm)

Can prevent components and conveyor belts from loosening and entering the product during operation

Detachable for easy cleaning and disinfection of conveyor belts

The teeth embedded longitudinally in the conveyor belt can provide strong grip.

Conveyor belt buckle system

Used for installing low profile conveyors

With connectors, simple and economical. With connectors, simple and economical

Alligator The buckle can provide continuous length, suitable for any width of conveyor belt and ensuring

The tension is uniform across the entire bandwidth. The integrated buckle strip ensures that there will be no issues on the conveyor belt

Scattered buckles will not allow loose parts to enter the conveyed products.

Suitable for conveyor belt width range: 8 mm to 12.5 mm (1/32 "to 1/2") *,

Alligator conveyor belt buckle installation does not require special tools, only a hammer is needed.

The buckle is fixed by longitudinal teeth embedded in the conveyor belt, which are like tiger pliers

Press and hold the conveyor belt tightly. During the installation process, the fixture tightly holds the gauge rod and buckle together

Press onto the conveyor belt to ensure a secure and straight joint. Linear splicing is also convenient for insertion

Entering and selling.

Market Application:

• Package and component transportation

• Food and hygiene contact

• Agricultural harvesting and processing

• Recycling and waste disposal

• Wooden products

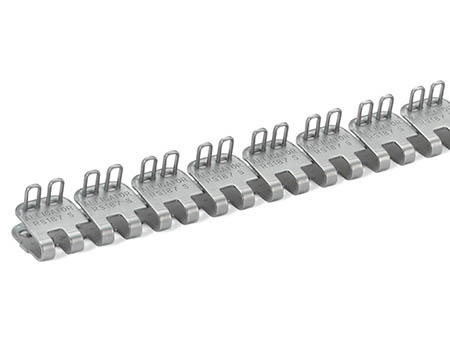

Staple Fastener

The Staple Fastener System is ideal for a wide variety of light- and medium-duty fastener applications. The system features one-piece fastener strips with pre inserted staples that speed installation and keep downtime to a minimum.

Mechanical buckle strength up to 200 PIW (35 kN/m)
Suitable for conveyor belts with a thickness of 1/16 "to 1/4" (1.5 mm to 6.4 mm)
Drum diameter 2 "to 4" (50 mm to 102 mm)
Form wear-resistant joints
The inclined edges and nail buckle notches ensure a smooth connection with the conveyor belt components
Stainless steel and carbon steel materials are available for selection
Easy installation
